Just received your HTVRONT E15 15-needle Embroidery Machine? Congratulations — you're one step closer to unlocking professional multi-color embroidery for your business. This guide walks you through the complete unboxing and installation process, from inspecting the wooden shipping crate to assembling the stand and placing the machine securely. We'll also introduce you to the key components of this embroidery machine so you can get oriented quickly and start stitching with confidence.
Key Takeaways
Team lifting is essential — the E15 embroidery machine weighs about 116 kg (255.74 lb), so at least two adults are required for safe unboxing and assembly.
Inspect everything before starting — check the crate and machine for shipping damage, and verify all accessories against the packing list before installation.
Keep the original packaging — the wooden crate and mounting screws will be needed for future transportation or storage.
Complete the final stability checks — before powering on, confirm the stand is level, screws are tight, and the machine doesn't wobble.
Watch the video tutorial — follow along with the step-by-step installation video to make the process even smoother.
What's in the Box: Unboxing Guide
Before unboxing, place the wooden crate on a flat, stable surface and make sure you have enough working space. Since the machine is large and heavy, we recommend that at least two people work together to safely unbox it.
Step 1: Inspect the Crate & Prepare Your Tools
First, inspect the wooden crate for any signs of damage, deformation, moisture, or impact during shipping. If you notice any damage, take photos for documentation and contact our customer support team at support@htvront.com before continuing.
You'll also need the following tools:
Flathead screwdriver — for prying open latches and retaining clips
Phillips screwdriver — for removing screws on retaining clips
Scissors — for cutting protective film and plastic packaging
⚠️ Safety first: Put on protective gloves before handling the wooden crate panels. The crate edges and retaining clips can have sharp surfaces.
Step 2: Release the Latches & Remove the Top Cover
First, open the eight latches on top of the wooden crate. Then, put on protective gloves. Insert a screwdriver into the gap around the lid and gently pry it open. With another person's help, lift the top cover off and set it aside.
Step 3: Remove the Retaining Clips
Next, remove the 16 retaining clips around the crate. Use a Phillips screwdriver to remove the two screws on each retaining clip. Then use a flathead screwdriver to pry it open from the longer, curved side while holding the opposite side to prevent it from springing loose.
Note: Retaining clips are under tension. Hold the clip firmly as you pry it open — it may spring loose if released suddenly.
Step 4: Remove the Side Panels
Now, remove the four side panels one at a time. The panels may come loose unexpectedly — have another person support each panel as you remove it to prevent it from falling.
Note: Place the removed panels flat on the floor or securely against a wall. Keep the work area clear for safe operation.
Once the panels are removed, use scissors to carefully remove the protective film and plastic bag from the machine.
Note: Do not pull forcefully, as this may damage the machine's cables or components.
Then, remove the extension table stored at the back of the machine. Next, remove the accessories from each section of the crate.
Once you receive your E15 embroidery machine, check all the accessories against the packing list to make sure everything is included. Everything you need to get started is included in the box, so you can start creating right away — no additional purchases required.
Pre-Installation Checks
Before installing the machine, complete the following checks:
Machine Condition: Check that the machine is free from dents, scratches, or other visible damage.
Accessories: Make sure all accessories are included per the packing list.
Shipping Fasteners: Make sure there are no cable ties or screws remaining underneath the machine.
Installation Area: Ensure the stand is stable and there is enough space around the machine for ventilation.
Missing or Damaged Items: If anything is missing or damaged, stop the installation immediately and contact customer support.
Machine Installation
Installing the E15 embroidery machine involves three main steps: removing the shipping brackets, assembling the stand, and placing the machine on the stand. Work carefully and always have a second person assist with lifting.
Step 1: Remove the Shipping Brackets from the Machine
Use the 12–14 mm open-end wrench from the tool kit to remove the four shipping brackets securing the machine to the crate. Keep them in a safe place for future use.
Refer to the parts identification diagram and locate the following components:
Stand Uprights
Crossbars
Stand Base Plate
Stand Shelf
Step 2: Assemble the Stand
Loosen the orange leveling feet at the bottom of both stand uprights until they rest firmly on the floor. Then use the 2.5 mm hex key to remove the eight screws from each stand upright.
Place the two stand uprights parallel to each other. Position one upright with the hook facing outward and the other as a mirror image with the stand shelf mounting holes facing inward.
Now, install the stand base plate. Install the screws loosely — do not fully tighten them yet, leaving enough room for adjustment.
Then, remove the 12 pre-installed screws from the stand shelf mounting points. Install the front and rear crossbars between the two stand uprights, then loosely secure the eight outer screws.
Once the crossbars are in place, install the stand shelf and loosely secure the four inner screws. Again, do not fully tighten them yet.
Finally, use the 2.5 mm and 5 mm hex keys to fully tighten all the screws, making sure the stand is stable and does not wobble.
Pro Tip: Tightening the screws in a cross pattern — rather than going around in a circle — helps distribute tension evenly and prevents the stand from warping.
Install the extension table locking screw on the side with the hook. The stand assembly is now complete.
Step 3: Place the Machine on the Stand
With two people, carefully lift the machine from the bottom and align it with the four round support pads on top of the stand.
⚠️ Important lifting notes:
Do not lift or hold the machine by the touchscreen, thread stand, machine head, covers, embroidery arm, or needle bar.
Do not force the machine into position if it is not properly aligned.
Lower the machine gently into place. Next, check whether the machine is stable. If there is any wobbling, adjust the leveling feet until all four feet are firmly in contact with the support pads. Then, tighten the lock nuts on the machine leveling feet. Adjust and lock the stand leveling feet as well.
Remove the protective film from the touchscreen. Then, adjust the touchscreen to a comfortable viewing angle using the three screws on the back.
The machine is now fully assembled.
Final Checks Before Use
Before using the machine, complete the following final checks:
Make sure all four stand feet are firmly in contact with the floor.
Confirm that the stand is stable and does not wobble.
Verify that all screws are fully tightened.
Ensure all four machine feet are properly seated on the support pads.
Gently push the machine to confirm that it remains stable.
Make sure the screen bracket is securely fastened and does not sag.
Ensure there is enough space around the machine for safe operation.
Get to Know the Machine

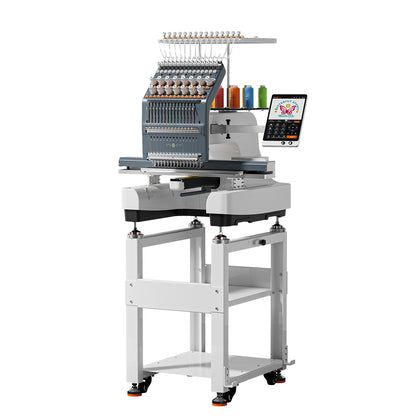

With the installation complete, let's get to know the HTVRONT E15 embroidery machine. The images below label each key component. Use the short descriptions to understand what each group of parts does during daily operation.
Front View
The front of the machine is where you'll spend most of your time. The thread stand feeds all 15 needles, while the touchscreen gives you full control over design selection, stitching progress, and settings. The X-axis and rotary hook area are the core stitching zone — keep this area clear and clean for the best results.
Right View
On the right side, you'll find the emergency stop button — a critical safety feature that immediately halts stitching if something goes wrong. The thread stand tray holds your spare thread cones within easy reach during color changes.
Left View
The left side houses the manual color change knob, which lets you manually rotate the needle bar to a specific position when needed — handy for threading individual needles or troubleshooting. The Y-axis drive system controls the forward-and-backward movement of the embroidery arm.
Rear View
At the back of the machine, you'll find the main power switch and power inlet. Always ensure the power cord is securely connected before switching on, and avoid placing the rear of the machine too close to a wall — you'll want easy access to these connections for maintenance and safety.
Machine Dimensions & Weight
Planning your workspace? Here are the key physical specifications you need to know:
Item
Specification
Machine Dimensions (L × W × H)
920 × 920 × 830 mm / 36.22 × 36.22 × 32.68 in
Machine Net Weight
116 kg / 255.74 lb
Packed Weight (Machine + Wooden Crate)
170 kg / 374.79 lb
Wooden Crate Dimensions (L × W × H)
1100 × 800 × 1000 mm / 43.31 × 31.50 × 39.37 in
Suggested installation space: Install the machine on a flat, level floor. Allow at least 1000 mm (39.37 in) of clear space in front of the machine, and at least 500 mm (19.69 in) at the rear and on each side. This ensures the largest embroidery hoop can move freely and gives you comfortable access for threading, operation, heat dissipation, and maintenance. Before starting a stitch-out, always confirm there are no walls, furniture, or other obstacles within the hoop's movement range.
Video Tutorial
Prefer to watch rather than read? Follow along with this step-by-step unboxing and installation video for the E15 embroidery machine:
Watch the unboxing and installation of the HTVRONT 15 Needle Embroidery Machine, the E15 model, to get started quickly.
Conclusion
Congratulations — your E15 embroidery machine is now fully unboxed, assembled, and ready for its first stitch-out. Taking the time to inspect the crate carefully, assemble the stand correctly, and perform the final stability checks will pay off every day you use this machine. A solid, level installation is the foundation for clean, consistent embroidery results.
Now that your machine is set up, the next step is threading the needles, loading your first design, and running a test stitch-out. For detailed guidance on operating the machine, check out the E15 tutorial guide and the user manual.
Yes — keep the original packaging, including the wooden crate and its mounting screws, for future storage or transportation. The crate is custom-designed to protect the machine during shipping, and you'll need it if you ever move your studio, relocate, or send the machine in for service.
Is the stand required? Can I place the E15 on a tabletop instead?
Yes — the stand is required. The E15 embroidery machine vibrates during operation. If placed directly on a regular household table, the machine may become unstable — and if it were to fall, the damage could be severe. The stand's rubberized base grips the floor to enhance stability while also absorbing the vibrations generated during stitching. This keeps the machine secure and helps maintain consistent embroidery quality. We strongly recommend always using the included stand.
Can I unbox and install the E15 by myself?
You can complete the unboxing of the E15 embroidery machine on your own, but we strongly recommend against installing it alone. The machine is heavy — 116 kg (255.74 lb) — and its size makes it impractical for one adult to safely lift and carry. Two adults working together will make the entire installation process simpler, more efficient, and significantly safer.
What should I do if I find shipping damage or missing parts?
If you notice any shipping damage, take photos for documentation and contact our customer support team at support@htvront.com before continuing. If any accessories are missing or damaged, stop the installation immediately and contact support. Do not attempt to operate the machine until the issue has been resolved.
How much space do I need to install the E15?
Install the machine on a flat, level floor with at least 1000 mm (39.37 in) of clearance in front and at least 500 mm (19.69 in) at the rear and on each side. This ensures the embroidery hoop can move freely and gives you comfortable access for threading, operation, heat dissipation, and maintenance.
