Why Heat Press Designs Wrinkle [2026 Updated]

Introduction

Wrinkles after pressing aren't random—they're usually the predictable outcome of heat, pressure, moisture, and polymer behavior. Once you identify which mechanism caused the wrinkle—moisture flash-off, uneven pressure, adhesive softening, fabric shrinkage, or sheet imprinting—the fix becomes repeatable. This guide provides a structured, symptom‑based approach to help you get smooth transfers more consistently, whether you're working with HTV, DTF, or sublimation on your Heat Press.

Let's start by understanding the physical mechanisms behind those frustrating wrinkles—because once you know what's actually happening, the fix becomes obvious.

1. What "Wrinkling" Really Means (Mechanisms, Not Myths)

Wrinkles typically come from one or more of these effects: moisture trapped in fibers flashes into vapor and distorts the design, thermoplastic transfer films soften under heat and can "set" into a wrinkled shape as they cool, synthetic fabrics may shrink differently than the transfer layer creating puckers, and non‑uniform pressure or temperature causes the film to flow unevenly across the design area.

When troubleshooting, it helps to think of your Heat Press as a controlled system: if any one variable is unstable, wrinkles are a common "symptom." Many transfer films and adhesives are thermoplastics that soften when heated and re‑solidify when cooled—if they shift while softened, they can set into a wrinkled shape. Polymer mobility often changes around the glass transition temperature. Fabrics—especially polyester versus cotton—may relax or shrink differently than the transfer layer during heating.

Understanding the mechanisms is helpful, but when you're staring at a wrinkled shirt, you need a faster answer. Here's a symptom‑based diagnostic table to cut through the guesswork.

2. Fast Diagnosis: Match the Symptom to the Cause

Use this table to quickly identify what went wrong—match what you see on your garment to the most likely cause, confirm with a simple test, and apply the best fix. Most wrinkling issues fall into one of five predictable patterns.

With a diagnosis in hand, let's dive deep into the four settings that control nearly every wrinkle outcome.

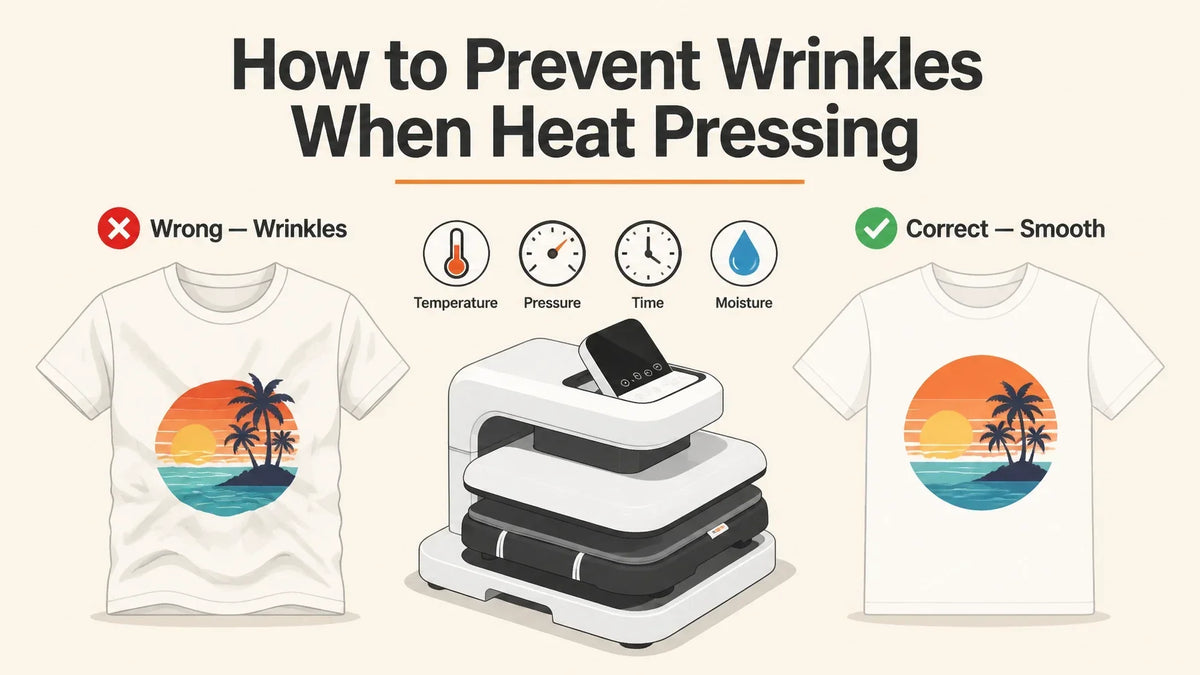

3. The Big Four Settings (Temperature, Pressure, Time, Moisture)

Temperature, pressure, time, and moisture are the four variables that determine whether your transfer comes out smooth or wrinkled. Mastering them—starting with calibrating your press's actual temperature—is what separates consistent results from constant frustration.

3.1 Temperature: Don't Trust the Display—Calibrate It

A hidden cause of wrinkling is temperature mismatch: the press display may say 177°C, while the platen surface varies across corners. To calibrate, heat to target temperature and stabilize for about 10 minutes, then measure the center and all four corners with an IR thermometer. If there's a significant spread, you're effectively pressing different designs at different temperatures. IR thermometry depends on surface emissivity and measurement conditions—for deeper background, see NIST resources on infrared spectral emissivity characterization and infrared spectral emittance of materials.

3.2 Pressure: More Pressure Can Create More Problems

Too little pressure leads to incomplete bonding, micro‑lifts, and wrinkles on peel. Too much pressure forces the film into the fabric texture, creating distortion lines. A quick check: close the press on a sheet of paper at each corner. If the drag feels similar across all four, your pressure is even. If one corner feels looser, adjust your press or use shims to level the platen.

3.3 Time: Heat‑Soak vs. Overcook

Over‑pressing keeps the adhesive and film soft longer and increases the chance of shifting and setting wrinkles. Typical starting points are 10–15 seconds for HTV, about 10–20 seconds for DTF, and 30–60 seconds for sublimation. Always start at the low end of the recommended range and increase only if adhesion is incomplete.

3.4 Moisture: The Quiet Wrinkle Factory

Textiles—especially cotton—absorb moisture from the air. Under heat, that moisture expands rapidly and can wrinkle both the fabric and the transfer. The fix is simple: pre‑press for 2–5 seconds—longer for hoodies and thick blanks—and keep your blanks sealed in a drier environment when not in use.

Settings dialed in. Now let's look at the materials themselves—because sometimes the vinyl or protective sheet is the hidden culprit.

4. Materials That Commonly Trigger Wrinkles (And How to Prevent Them)

4.1 Heat Transfer Vinyl: Quality and Compatibility Matter

Poor‑quality or mismatched vinyl is more likely to wrinkle, bubble, or distort under heat. Use reputable Heat Transfer Vinyl and follow the film's recommended temperature, time, and pressure—then fine‑tune based on your specific fabric. If wrinkles show up mainly at edges, it's often a combination of slightly low pressure, residual moisture, and film softness during peel.

4.2 Protective Barriers: Teflon/PTFE Sheets Can Transfer Creases

A protective sheet helps distribute heat and reduces scorching risk, but if it's creased, it can emboss that crease into the softened film. Use a clean, flat Teflon Sheet (PTFE) and store sheets flat or loosely rolled—avoid hard folds. PTFE properties and use as a film material are described in Polytetrafluoroethylene (PTFE).

With the theory covered, here's a repeatable workflow that prevents wrinkles before they start.

5. A Repeatable "No‑Wrinkle" Workflow

Follow these six steps in order for consistently smooth transfers: inspect and prep your press and protective sheet, pre‑press the garment to remove moisture and flatten fibers, position the transfer with heat tape if needed, press with stable settings, do an optional post‑press with clean paper to smooth texture, and always cool the item flat so the thermoplastic layer sets without distortion.

1. Inspect and Prep: Clean the platen and lower pad. Ensure your Teflon sheet is flat and residue‑free.
2. Pre‑Press Garment (2–5s): Removes moisture and flattens fibers—the single most effective wrinkle prevention step.
3. Position Transfer: Use heat‑resistant tape if needed to prevent micro‑shifts during pressing.
4. Press: Use stable temperature, even pressure, and correct time on your Heat Press.
5. Optional Post‑Press: Cover with clean paper and post‑press 2–5 seconds to smooth texture—follow your film's specific guidance.
6. Cool Flat: Let the item cool on a flat surface so the softened thermoplastic layer sets without distortion.

But what if you're reading this after the damage is done? Here's what to try—and when to admit defeat.

6. If It Already Wrinkled: What Usually Works

Re‑Press (Best for "Set‑In" Wrinkles)

Cover the design with clean parchment paper, butcher paper, or a smooth PTFE sheet. Press for 2–5 seconds at a slightly lower temperature than your original setting. Stop immediately if you see rippling—overheating can permanently deform thermoplastic films and make the problem worse.

When to Start Over

If you see melted ripples, scorching, or adhesive bleed, replacement is usually faster than attempting a rescue. The materials are compromised, and no amount of re‑pressing will restore a clean finish. Chalk it up as a learning data point and adjust your settings for the next run.

Frequently Asked Questions

Why does my heat transfer vinyl wrinkle after pressing?

HTV wrinkling is most often caused by one of three things: trapped moisture in the fabric that flashes into steam during pressing, uneven pressure from an unlevel platen that lets the film shift while softened, or a creased protective sheet that embosses its wrinkles into the hot vinyl. Pre‑pressing the garment for 2–5 seconds before applying the design solves the majority of moisture‑related wrinkling.

Can you iron out wrinkles on a heat‑pressed shirt?

You can re‑press wrinkles using a heat press or iron, but with caution. Cover the design with clean parchment paper or a smooth Teflon sheet, use a slightly lower temperature than the original press, and limit the time to 2–5 seconds. Never iron directly on the vinyl surface. If the wrinkles are accompanied by melting, scorching, or adhesive bleed, the damage is permanent and the item cannot be salvaged.

How does humidity affect heat press results?

Humidity is one of the most overlooked causes of wrinkling. Cotton and other natural fibers absorb moisture from the air, and when that moisture is suddenly heated to 300°F or higher, it expands rapidly into steam. This steam pushes against the transfer layer from underneath, creating bubbly wrinkles that spread outward. Pre‑pressing the garment drives off this moisture before the transfer is applied. Storing blanks in a dry environment—ideally sealed with desiccant packs—also helps significantly.

What's the ideal pressure for wrinkle‑free heat pressing?

Medium, even pressure is the sweet spot for most applications. Too little pressure creates incomplete bonding and edge lifting. Too much pressure forces the softened film into the fabric texture, creating distortion lines and a rough surface. A simple calibration test: close your press on a sheet of paper at each of the four corners. If the drag feels consistent everywhere, your pressure is even. If one corner is looser, adjust the press or add shims to level the platen.
